SPECIALTY FASTENERS

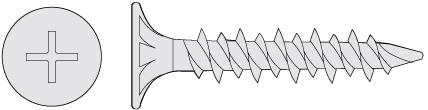

ROCK-ON HI-LO \| Wafer Head w/ Nibs – Spoon Point – Corrosion Resistant – #2 Phillips
For attaching Wonderboard, Durock, and similar products to wood or metal studs, up to 20 gauge. Made in the USA by ITW Buildex, with Climacoat finish.

SIZE	BULK COUNTS		BULK CARTON	5 LB. BOX*	1 LB. BOX*
	Qty. (mpcs)	Net wt. (lbs.)	Item no.	Item no.	Item no.
9 x 1-1/4”	5.0	29	ROHLB125	ROHLD125	ROHLC125
9 x 1-5/8”	4.0	29	ROHLB162	ROHLD162	ROHLC162
5 LB. BOXES are sold in packs of 8. 1 LB. BOXES are sold in packs of 25.

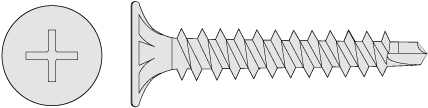

ROCK-ON S-12 \| Wafer Head w/ Nibs – Drill Point – Corrosion Resistant – #2 Phillips
Same as Hi-Lo, but can be used with up to 12 gauge metal studs. Made in the USA by ITW Buildex with patented S-12 drill point and Climacoat finish.

SIZE	BULK COUNTS		BULK CARTON	5 LB. BOX*	1 LB. BOX*
	Qty. (mpcs)	Net wt. (lbs.)	Item no.	Item no.	Item no.
8 x 1-1/4”	5.0	30	ROSDB125	ROSDD125	ROSDC125
8 x 1-5/8”	4.0	30	ROSDB162	ROSDD162	ROSDC162
5 LB. BOXES are sold in packs of 8. 1 LB. BOXES are sold in packs of 25.

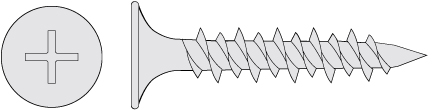

CEMENT BOARD HIGH-LOW \| Wafer Head w/ Nibs – Spoon Point – Corrosion Resistant – #2 Phillips
Similar in use to Rock-On Hi-Lo.

SIZE	BULK COUNTS		BULK CARTON	BULK PAIL	9 LB. PAIL*	5 LB. BOX*	1 LB. BOX*
	Qty. (mpcs)	Net wt. (lbs.)	Item no.	Item no.	Item no.	Item no.	Item no.
8 x 1-1/4”	5.0	31	CBB125	CBV125	CBN125	CBD125	CBC125
8 x 1-5/8”	4.0	29	CBB162	CBV162	CBN162	CBD162	CBC162
9 LB. PAILS are sold in packs of 4. 5 LB. BOXES are sold in packs of 8. *1 LB. BOXES are sold in packs of 25.

TEKS WOOD -TO- METAL \| Flat Head – Drill Point – Wings – Corrosion Resistant
For attaching wood to steel frames. Wings help penetrate wood and then break on contact with steel. Made in USA by ITW Buildex with Climaseal finish.

SIZE	DRIVE	BULK COUNTS		BULK CARTON	1 LB. BOX*
		Qty. (mpcs)	Net wt. (lbs.)	Item no.	Item no.
10 x 1-7/16”	#2 PH	3.0	30	TXB1082000	TXC1082000
10 x 1-13/16”	#2 PH-SQ	2.5	29	TXB1791000*	TXC1791000*
12 x 2-1/4”	#3 PH	2.0	38	TXB1092000	TXC1092000
1 LB. BOXES are sold in packs of 25. Size 10 x 1-13/16” does not have wings.


SELF DRILL WITH WINGS \| Drill Point – Zinc Plated
Similar in use to Teks with wings.
SIZE	DRIVE	BULK COUNTS		BULK PAIL	1 LB. BOX*
		Qty. (mpcs)	Net wt. (lbs.)	Item no.	Item no.
10 x 1-7/16”	#2 PH	4.0	36	SGB144*	SGC144*
12 x 2”	#3 PH	2.0	31	SGB200*	SGC200*
12 x 2-1/2”	#3 PH	1.0	20	SGB250*	SGC250*
1 LB. BOXES are sold in packs of 25. Size 10 x 1-7/16” has a wafer head; 12 x 2” and 12 x 2-1/2” have flat heads.

ACOUSTICAL LAG \| Eye Head – Sharp Point – Plain Steel – Slotted Drive
The easy way to install suspended ceilings. Special screw gun drivers are available.

SIZE	BULK COUNTS		BULK CARTON	100 PC BOX
	Qty. (mpcs)	Net wt. (lbs.)	Item no.	Item no.
1/4 x 3”	1.0	23	LAGB	LAGE

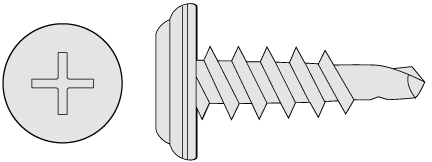

WAFER SELF DRILL \| Pan Washer Head – Drill Point – Zinc Plated - #2 Phillips
For the application of metal lathe or other material to up to 12 gauge studs.

SIZE	BULK COUNTS		BULK CARTON	1 LB. BOX*	100 PC BOX*	BLISTER PACK*
	Qty. (mpcs)	Net wt. (lbs.)	Item no.	Item no.	Item no.	Item no. (pcs)
8 x 1/2”	10.0	35	WSDB08050	WSDC08050	WSDE08050	WSDM08050 (100)
8 x 3/4”	10.0	45	WSDB08075	WSDC08075	WSDE08075	WSDM08075 (90)
8 x 1”	8.0	43	WSDB08100	WSDC08100	WSDE08100	WSDM08100 (80)
8 x 1-1/4”	6.0	37	WSDB08125	WSDC08125	WSDE08125	WSDM08125 (70)
8 x 1-5/8”	4.5	37	WSD08162	WSDC08162		WSDM08162 (50)
1 LB. BOXES are sold in packs of 25. 100 PC BOXES are sold in packs of 10. *BLISTER PACKS are sold in packs of 6.

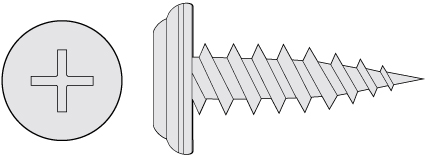

WAFER SHARP POINT \| Pan Washer Head – Sharp Point – Zinc Plated – #2 Phillips
Similar to Wafer Self Drill, but for up to 20 gauge studs.

SIZE	BULK COUNTS		BULK CARTON	500 PC BOX*	100 PC BOX*
	Qty. (mpcs)	Net wt. (lbs.)	Item no.	Item no.	Item no.
8 x 9/16”	10.0	39	WSPG8916	WSDC08050	WSPE8916
500 PC BOXES are sol in packs of 5. 100 PC BOXES are sold in packs of 10.

HEX SELF DRILL \| Hex Washer Head – Drill Point – Zinc Plated
Attaches back up plates, fixtures, door frames, and channel to structural studs and metal decks, up to 12 gauge.

SIZE	SOCKET SIZE	BULK COUNTS		BULK CARTON	1 LB. BOX*	100 PC BOX*	BLISTER PACK*
		Qty. (mpcs)	Net wt. (lbs.)	Item no.	Item no.	Item no.	Item no. (pcs)
6 x 1/2”	1/4”	20.0	37	HSDB06050		HSDE06050	HSDM06050 (110)
8 x 1/2”	1/4”	10.0	33	HSDB08050	HSDC08050	HSDE08050	HSDM08050 (100)
8 x 3/4”	1/4”	10.0	44	HSDB08075	HSDC08075	HSDE08075	HSDM08075 (90)
8 x 1”	1/4”	8.0	42	HSDB08100	HSDC08100	HSDE08100	HSDM08100 (80)
8 x 1-1/4”	1/4”	6.0	37	HSDB08125	HSDC08125	HSDE08125
8 x 2”	1/4”	4.0	36	HSDB08200	HSDC08200	HSDE08200

10 x 1/2”	5/16”	10.0	49	HSDB10050		HSDE10050	HSDM10050 (80)
10 x 3/4”	5/16”	7.0	38	HSDB10075	HSDC10075	HSDE10075	HSDM10075 (70)
10 x 1”	5/16”	5.0	38	HSDB10100	HSDC10100	HSDE10100	HSDM10100 (60)
10 x 1-1/4”	5/16”	4.0	34	HSDB10125	HSDC10125	HSDE10125	HSDM10125 (55)
10 x 1-1/2”	5/16”	3.0	30	HSDB10150	HSDC10150	HSDE10150	HSDM10150 (50)
10 x 2”	5/16”	2.0	23	HSDB10200	HSDC10200	HSDE10200	HSDM10200 (35)
10 x 3”	5/16”	1.5	26	HSDB10300	HSDC10300	HSDC10300

12 x 3/4”	5/16”	5.0	42	HSDB12075	HSDC12075	HSDE12075	HSDM12075 (55)
12 x 1”	5/16”	3.0	30	HSDB12100	HSDC12100	HSDE12100	HSDM12100 (50)
12 x 1-1/4”	5/16”	3.0	35	HSDB12125	HSDC12125	HSDE12125	HSDM12125 (40)
12 x 1-1/2”	5/16”	2.5	33	HSDB12150	HSDC12150	HSDE12150	HSDM12150 (35)
12 x 2”	5/16”	2.0	33	HSDB12200	HSDC12200	HSDE12200	HSDM12200 (30)

14 x 3/4”	3/8”	4.0	51	HSDB14075	HSDC14075	HSDE14075	HSDM14075 (25)
14 x 1”	3/8”	3.0	22	HSDB14100	HSDC14100	HSDE14100	HSDM14100 (22)
14 x 1-1/4”	3/8”	2.5	42	HSDB14125	HSDC14125	HSDE14125	HSDM14125 (20)
14 x 1-1/2”	3/8”	2.0	40	HSDB14150		HSDE14150
14 x 2”	3/8”	1.0	25	HSDB14200		HSDE14200
14 x 2-1/2”	3/8”	1.0	28	HSDB14250		HSDE14250
14 x 3”	3/8”	1.0	30	HSDB14300		HSDE14300
1 LB. BOXES are sold in packs of 25. 100 PC BOXES are sold in packs of 10. *BLISTER PACKS are sold in packs of 6.
