- HEADCOTE 305
Grade 305 stainless steel HEADCOTE in 18 colors and many sizes and head styles.
- HEADCOTE 316
Grade 316 stainless steel HEADCOTE with extra resistance to salt, best for marine areas.
- HEADCOTE RAZORBACK
Our 4-point razor thread technology reduces the need to pre-drill into hardwoods.
- HEADCOTE
CAP-TORHEADCOTE 305 and 316 stainless steel screws for capstock and composite decking.
- HEADCOTE COLLATED
Collated grade 305 and 316 stainless Standard Headcote and Headcote Composite in 13 different colors.
STANDARD HEADCOTE 305

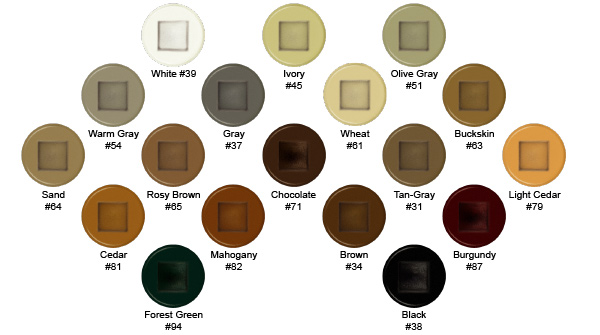

COLOR, SIZES AND PACKING
Standard Headcote 305 deck screws are available in the following colors, sizes and package types. Also see Applications / Usage Notes for views of Headcote screws in many popular decking materials.
| STANDARD HEADCOTE 305 | Trim Head w/ Nibs – Stainless Steel – Color Coated Heads – Auger Point – Square Recess | ||||||||
|---|---|---|---|---|---|---|---|---|
| Grade 305 stainless steel, color coated heads, auger points, countersinking heads with nibs, square recess and ACQ rated. Use for all decking applications and PVC trimboard. | ||||||||
 |  |  |  |  |
||||
| SIZE | COLOR | RECESS | PRO | PRO | CONTRACTOR | DECK | ACCESSORY | ACCESSORY |
| PACK* | PACK* | PACK* | PACK* | PACK* | PACK* | |||
| 1750 pcs w/ | 1750 pcs | 1050 pcs | 350 pcs | 100 pcs w/ | 100 pcs | |||
| Smart-Bit Item no. | Item no. | Item no. | Item no. | Smart-Bit Item no. | Item no. | |||
| 7 x 1-5/8" | White | #1 SQ | S39K07162 | S39T07162 | S39M1100 | S39L1100 | ||
| 7 x 1-5/8" | Ivory | #1 SQ | S45K07162 | S45T07162 | S45M1100 | S45L1100 | ||
| 7 x 1-5/8" | Olive Gray | #1 SQ | S51K07162 | S51T07162 | S51M1100 | S51L1100 | ||
| 7 x 1-5/8" | Warm Gray | #1 SQ | S54K07162 | S54T07162 | S54M1100 | S54L1100 | ||
| 7 x 1-5/8" | Gray | #1 SQ | S37K07162 | S37T07162 | S37M1100 | S37L1100 | ||
| 7 x 1-5/8" | Wheat | #1 SQ | S61K07162 | S61T07162 | S61M1100 | S61L1100 | ||
| 7 x 1-5/8" | Buckskin | #1 SQ | S63K07162 | S63T07162 | S63M1100 | S63L1100 | ||
| 7 x 1-5/8" | Sand | #1 SQ | S64K07162 | S64T07162 | S64M1100 | S64L1100 | ||
| 7 x 1-5/8" | Rosy Brown | #1 SQ | S65K07162 | S65T07162 | S65M1100 | S65L1100 | ||
| 7 x 1-5/8" | Chocolate | #1 SQ | S71K07162 | S71T07162 | S71M1100 | S71L1100 | ||
| 7 x 1-5/8" | Tan-Gray | #1 SQ | S31K07162 | S31T07162 | S31M1100 | S31L1100 | ||
| 7 x 1-5/8" | Cedar | #1 SQ | S81K07162 | S81T07162 | S81M1100 | S81L1100 | ||
| 7 x 1-5/8" | Mahogany | #1 SQ | S82K07162 | S82T07162 | S82M1100 | S82L1100 | ||
| 7 x 1-5/8" | Brown | #1 SQ | S34K07162 | S34T07162 | S34M1100 | S34L1100 | ||
| 7 x 2-1/4” | White | #1 SQ | S39P07225 | S39T07225 | ||||
| 7 x 2-1/4" | Gray | #1 SQ | S37P07225 | S37T07225 | ||||
| 7 x 2-1/4" | Tan-Gray | #1 SQ | S31P07225 | S31T07225 | ||||
| 7 x 2-1/4" | Brown | #1 SQ | S34P07225 | S34T07225 | ||||
| 7 x 2-1/4" | Black | #1 SQ | S38P07225 | S38T07225 | ||||
| 8 x 2-1/2” | White | #2 SQ | S39P08250 | S39Q08250 | S39K08250 | S39T08250 | S39M3100 | S39L3100 |
| 8 x 2-1/2" | Ivory | #2 SQ | S45P08250 | S45Q08250 | S45K08250 | S45T08250 | S45M3100 | S45L3100 |
| 8 x 2-1/2" | Olive Gray | #2 SQ | S51P08250 | S51Q08250 | S51K08250 | S51T08250 | S51M3100 | S51L3100 |
| 8 x 2-1/2" | Warm Gray | #2 SQ | S54P08250 | S54Q08250 | S54K08250 | S54T08250 | S54M3100 | S54L3100 |
| 8 x 2-1/2" | Gray | #2 SQ | S37P08250 | S37Q08250 | S37K08250 | S37T08250 | S37M3100 | S37L3100 |
| 8 x 2-1/2" | Wheat | #2 SQ | S61P08250 | S61Q08250 | S61K08250 | S61T08250 | S61M3100 | S61L3100 |
| 8 x 2-1/2" | Buckskin | #2 SQ | S63P08250 | S63Q08250 | S63K08250 | S63T08250 | S63M3100 | S63L3100 |
| 8 x 2-1/2" | Sand | #2 SQ | S64P08250 | S64Q08250 | S64K08250 | S64T08250 | S64M3100 | S64L3100 |
| 8 x 2-1/2" | Rosy Brown | #2 SQ | S65P08250 | S65Q08250 | S65K08250 | S65T08250 | S65M3100 | S65L3100 |
| 8 x 2-1/2" | Chocolate | #2 SQ | S71P08250 | S71Q08250 | S71K08250 | S71T08250 | S71M3100 | S71L3100 |
| 8 x 2-1/2" | Tan-Gray | #2 SQ | S31P08250 | S31Q08250 | S31K08250 | S31T08250 | S31M3100 | S31L3100 |
| 8 x 2-1/2" | Light Cedar | #2 SQ | S79P08250 | S79Q08250 | S79K08250 | S79T08250 | S79M3100 | S79L3100 |
| 8 x 2-1/2" | Cedar | #2 SQ | S81P08250 | S81Q08250 | S81K08250 | S81T08250 | S81M3100 | S81L3100 |
| 8 x 2-1/2" | Mahogany | #2 SQ | S82P08250 | S82Q08250 | S82K08250 | S82T08250 | S82M3100 | S82L3100 |
| 8 x 2-1/2" | Brown | #2 SQ | S34P08250 | S34Q08250 | S34K08250 | S34T08250 | S34M3100 | S34L3100 |
| 8 x 2-1/2" | Burgundy | #2 SQ | S87P08250 | S87Q08250 | S87K08250 | S87T08250 | S87M3100 | S87L3100 |
| 8 x 2-1/2" | Forest Green | #2 SQ | S94P08250 | S94Q08250 | S94K08250 | S94T08250 | S94M3100 | S94L3100 |
| 8 x 3” | Gray | #2 SQ | S37P08300 | S37K08300 | S37T08300 | |||
| 8 x 3” | Tan-Gray | #2 SQ | S31P08300 | S31K08300 | S31T08300 | |||
| 8 x 3” | Brown | #2 SQ | S34P08300 | S34K08300 | S34T08300 | |||
| *PRO PACKS contain 1,750 screws for 500 square feet (45 square meters) of decking, and are available with or without a Smart-Bit pre-drilling and countersinking tool. *CONTRACTOR PACKS are sold in case quantities (4 per case) and contain 1,050 screws for 300 square feet (27 square meters) of decking. *DECK PACKS are sold in case quantities (9 per case) and contain 350 screws for 100 square feet (9 square meters) of decking. *ACCESSORY PACKS are sold in display boxes (10 per display box) and contain 100 screws for use with hidden fastener systems (starter boards, end boards and steps. |
||||||||

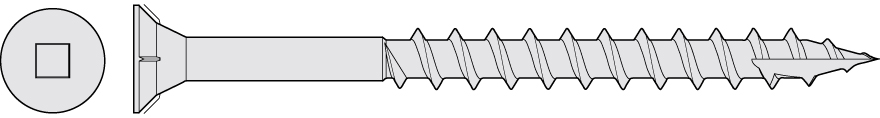

| STANDARD HEADCOTE 305 | Reinforced Flat Head w/ Nibs – Stainless Steel – Color Coated Heads – Auger Point – Square Recess | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade 305 stainless steel, color coated heads, auger points, countersinking heads with nibs, square recess and ACQ rated. Use for all decking applications. | |||||||||||
 |  |  |  |
||||||||
| SIZE | COLOR | RECESS | PRO | CONTRACTOR | DECK | ||||||
| PACK* | PACK* | PACK* | |||||||||
| 1750 pcs w/ | 1050 pcs | 350 / 265 pcs | |||||||||
| Smart-Bit Item no. | Item no. | Item no. (pcs) | |||||||||
| 8 x 2” | Gray | #2 SQ | S17K08200 | S17T08200 (350) | |||||||
| 8 x 2" | Tan-Gray | #2 SQ | S11K08200 | S11T08200 (350) | |||||||
| 8 x 2" | Brown | #2 SQ | S14K08200 | S14T08200 (350) | |||||||
| 10 x 2-1/2” | Gray | #2 SQ | S17P10250 | S17K10250 | S17T10250 (350) | ||||||
| 10 x 2-1/2" | Buckskin | #2 SQ | SF63P10250 | SF63K10250 | SF63T10250 (350) | ||||||
| 10 x 2-1/2" | Tan-Gray | #2 SQ | S11P10250 | S11K10250 | S11T10250 (350) | ||||||
| 10 x 2-1/2" | Cedar | #2 SQ | SF81P10250 | SF81K10250 | SF81T10250 (350) | ||||||
| 10 x 2-1/2" | Brown | #2 SQ | S14P10250 | S14K10250 | S14T10250 (350) | ||||||
| 10 x 3” | Gray | #2 SQ | S17P10300 | S17K10300 | S17T10300 (265) | ||||||
| 10 x 3" | Tan-Gray | #2 SQ | S11P10300 | S11K10300 | S11T10300 (265) | ||||||
| 10 x 3" | Cedar | #2 SQ | SF81P10300 | SF81K10300 | SF81T10300 (265) | ||||||
| 10 x 3" | Brown | #2 SQ | S14P10300 | S14K10300 | S14T10300 (265) | ||||||
|
|||||||||||
